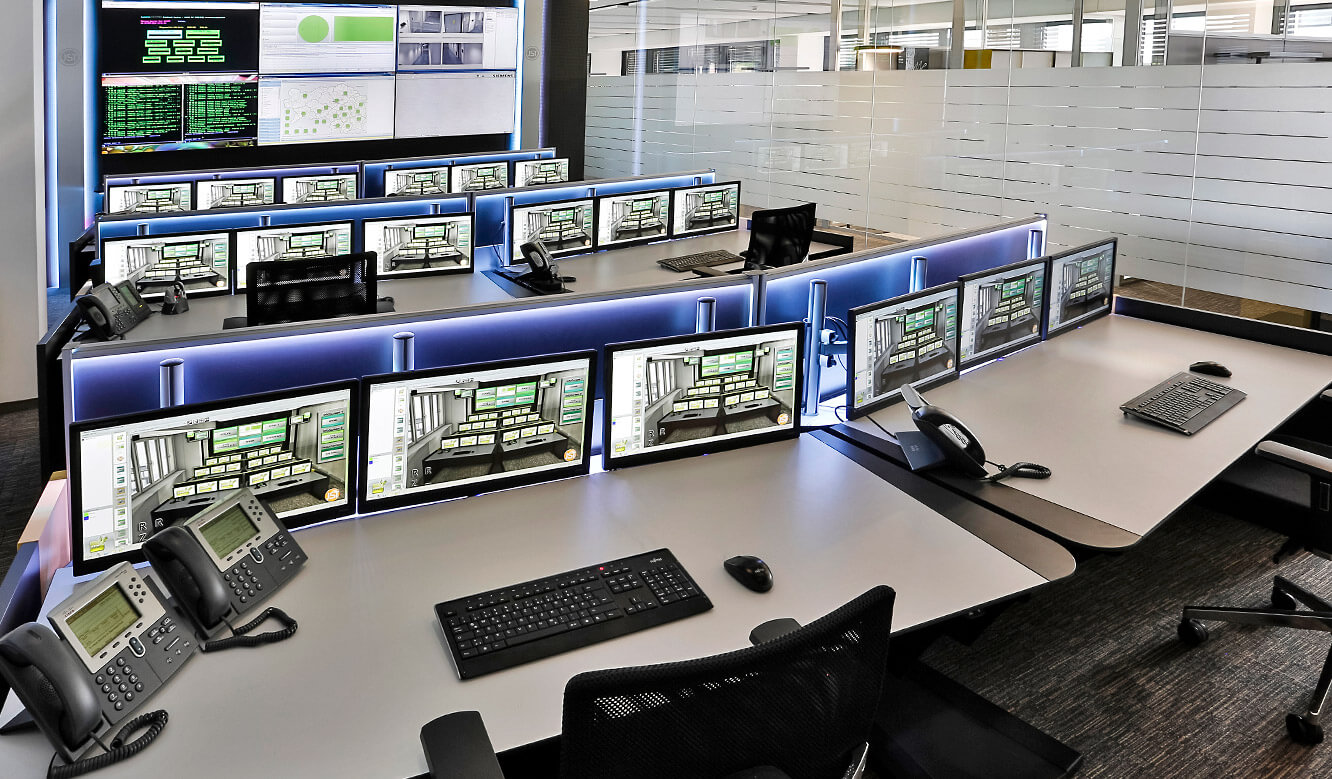

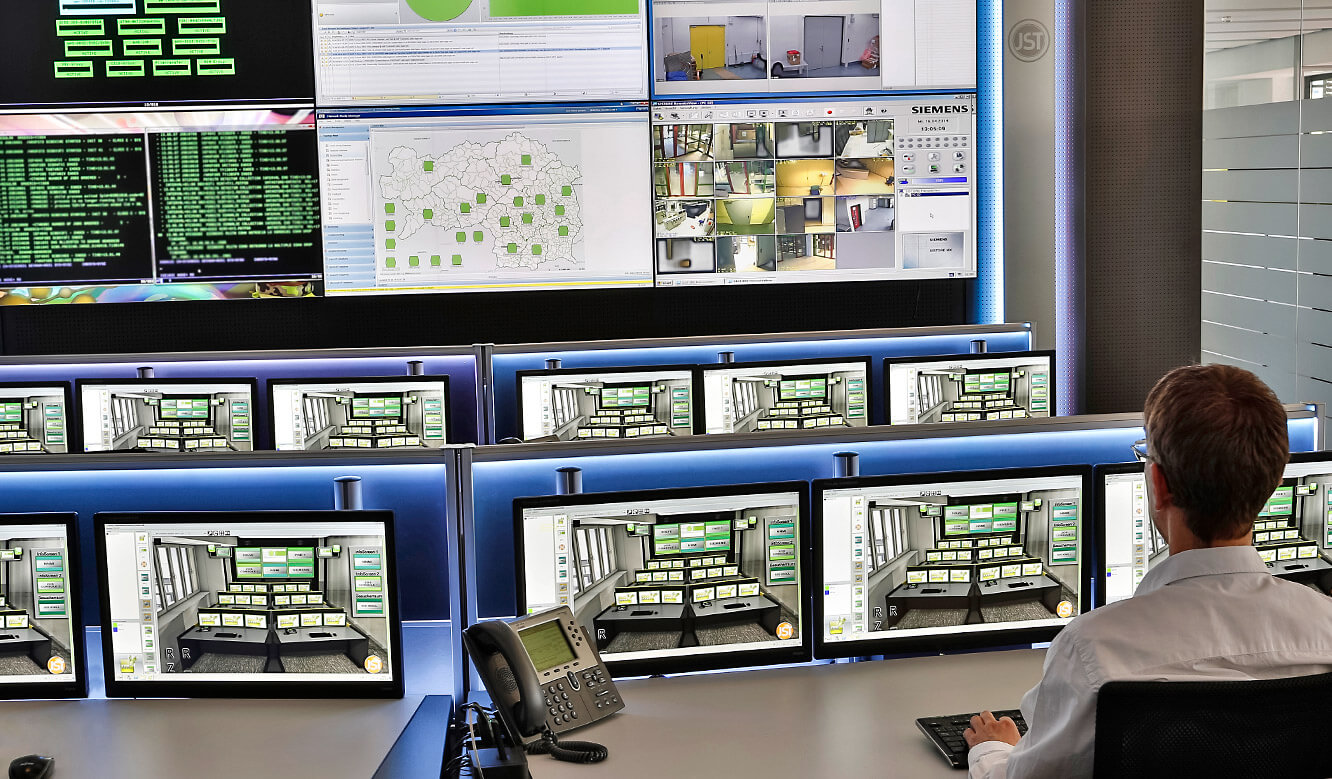

Photo 1 | JST Control Room: Perfect design paired with pioneering technology - the new Service Operation Center of RAITEC GmbH in Graz.

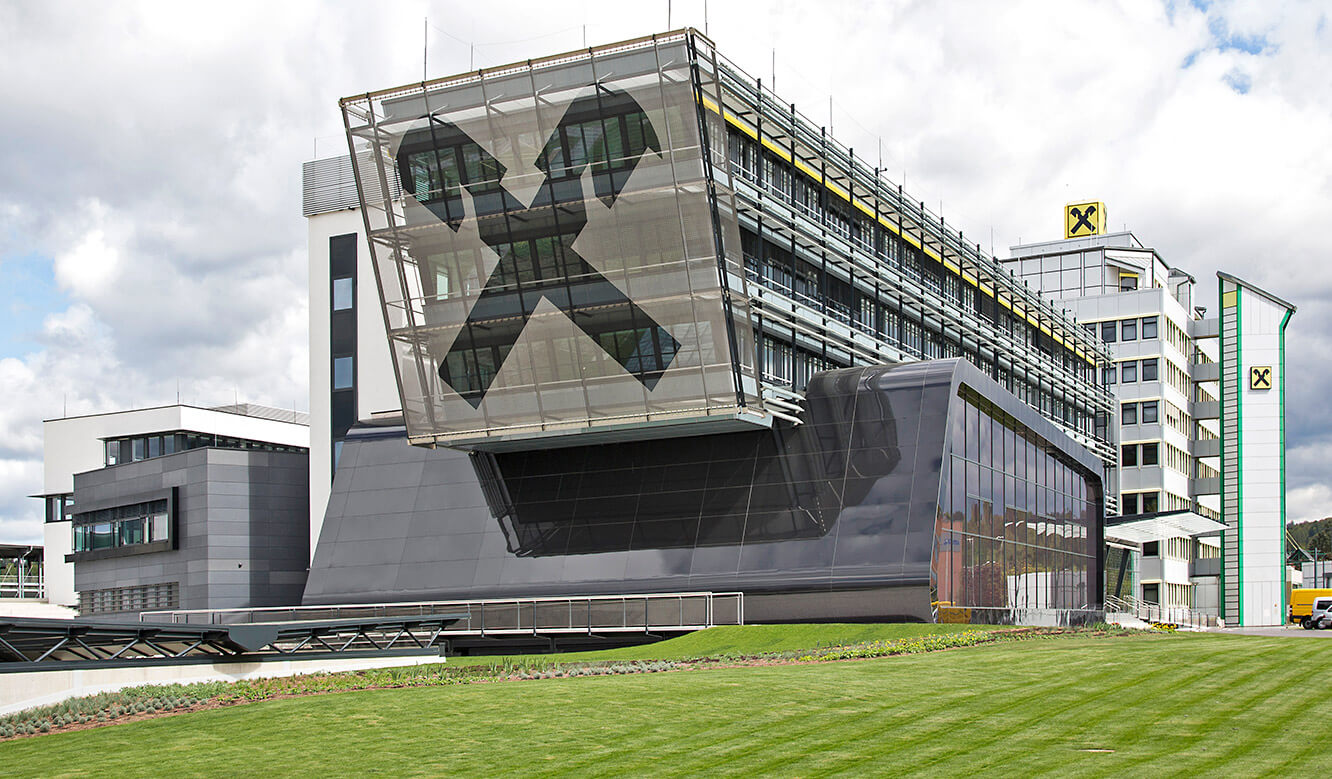

Photo 2 | Impresses not only with its forward-looking architecture and state-of-the-art equipment, but also with its ecologically sustainable construction - the Graz site of RAITEC GmbH.
Photo 3 | JST control room: signpost to the new Service Operation Center of RAITEC GmbH in Graz.

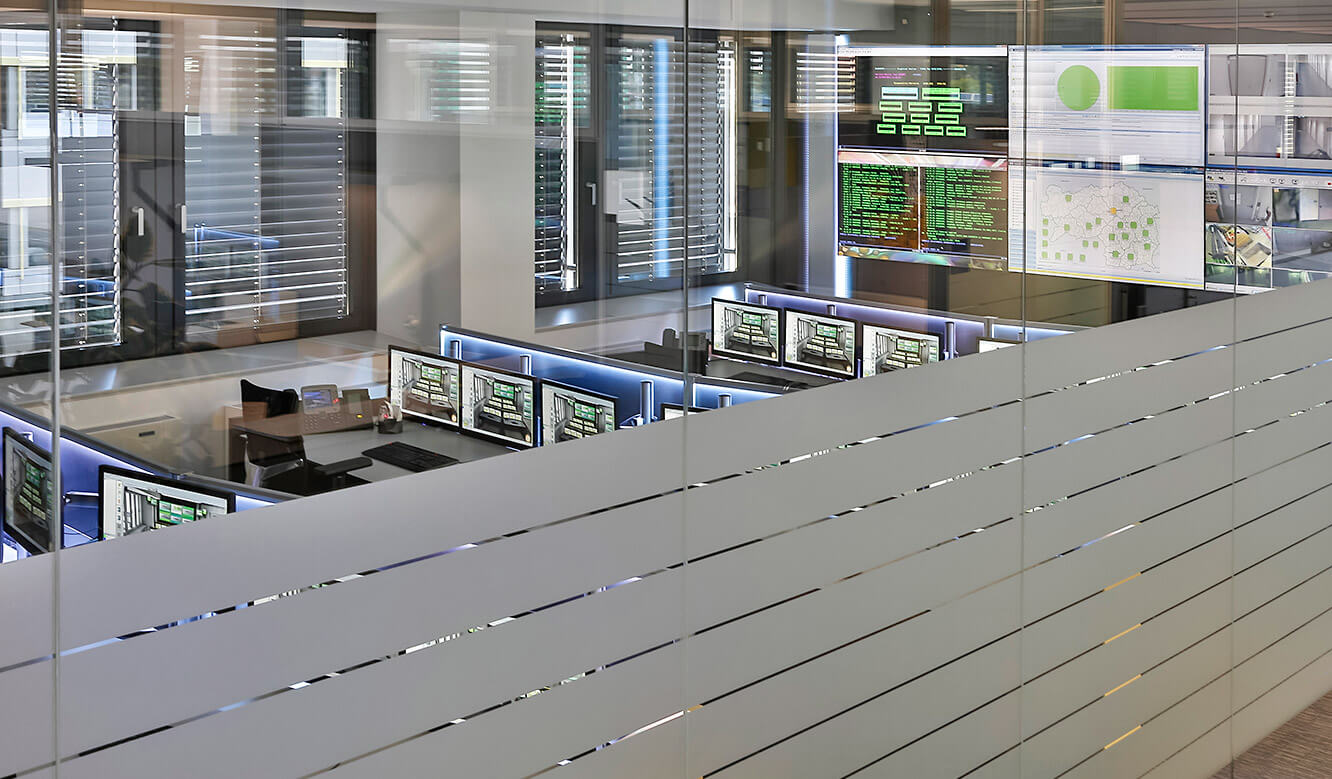

Photo 4 | JST control center: Security and maximum availability are among the cornerstones of the data center - in the Service Operation Center, these requirements are consistently implemented.
Photo 5 | JST control room desks: Meet the highest ergonomic and visual demands - the STRATOS X11® CommandDesks.

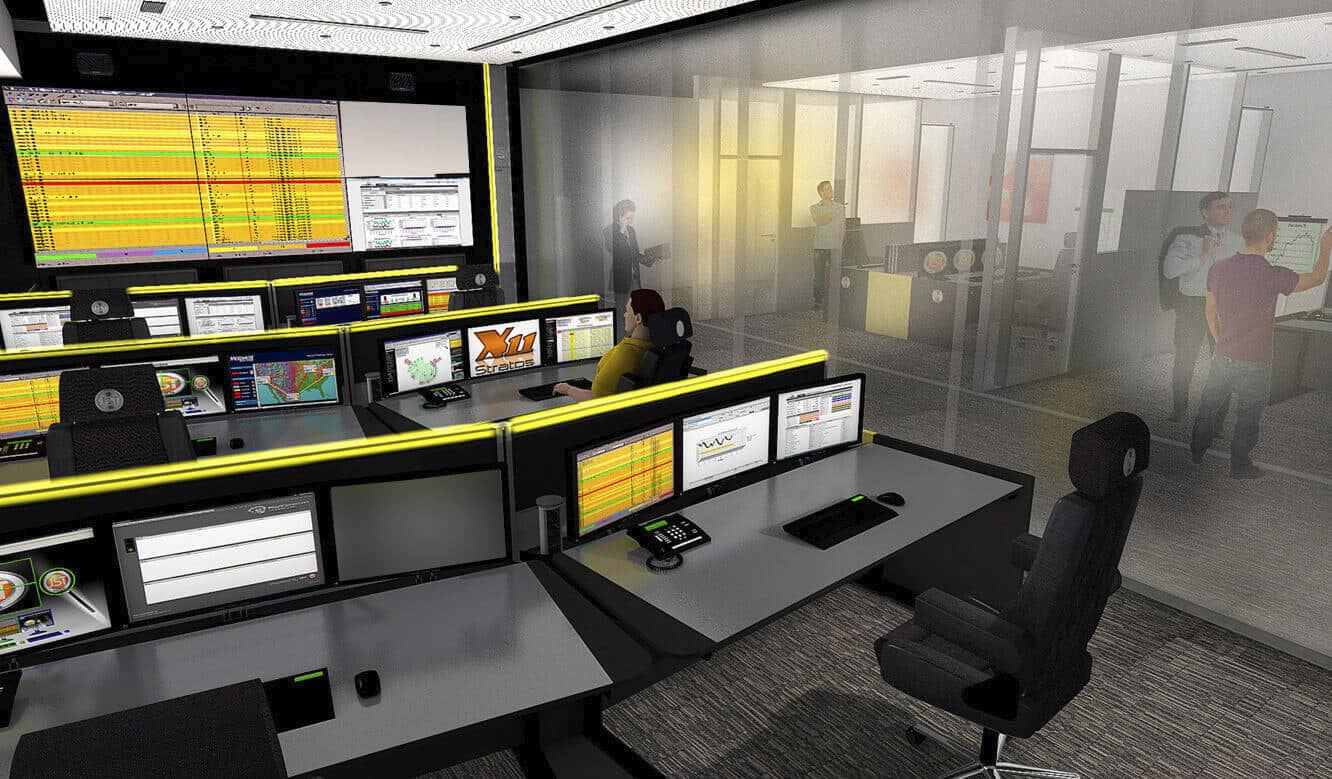

Photo 6 | JST 3D planning: Offers the customer a preview of the new control room: photorealistic 3D planning and design...
Photo 7 | ...and their translation into reality

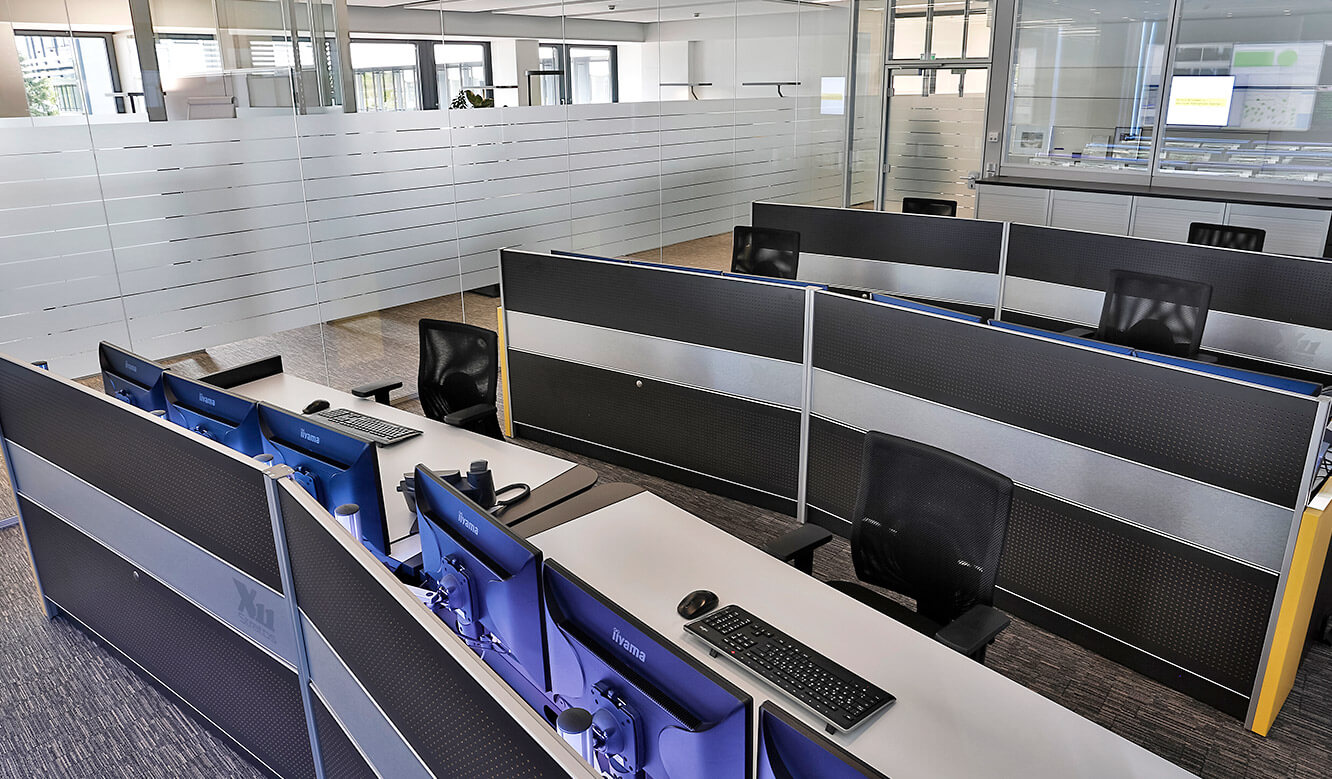

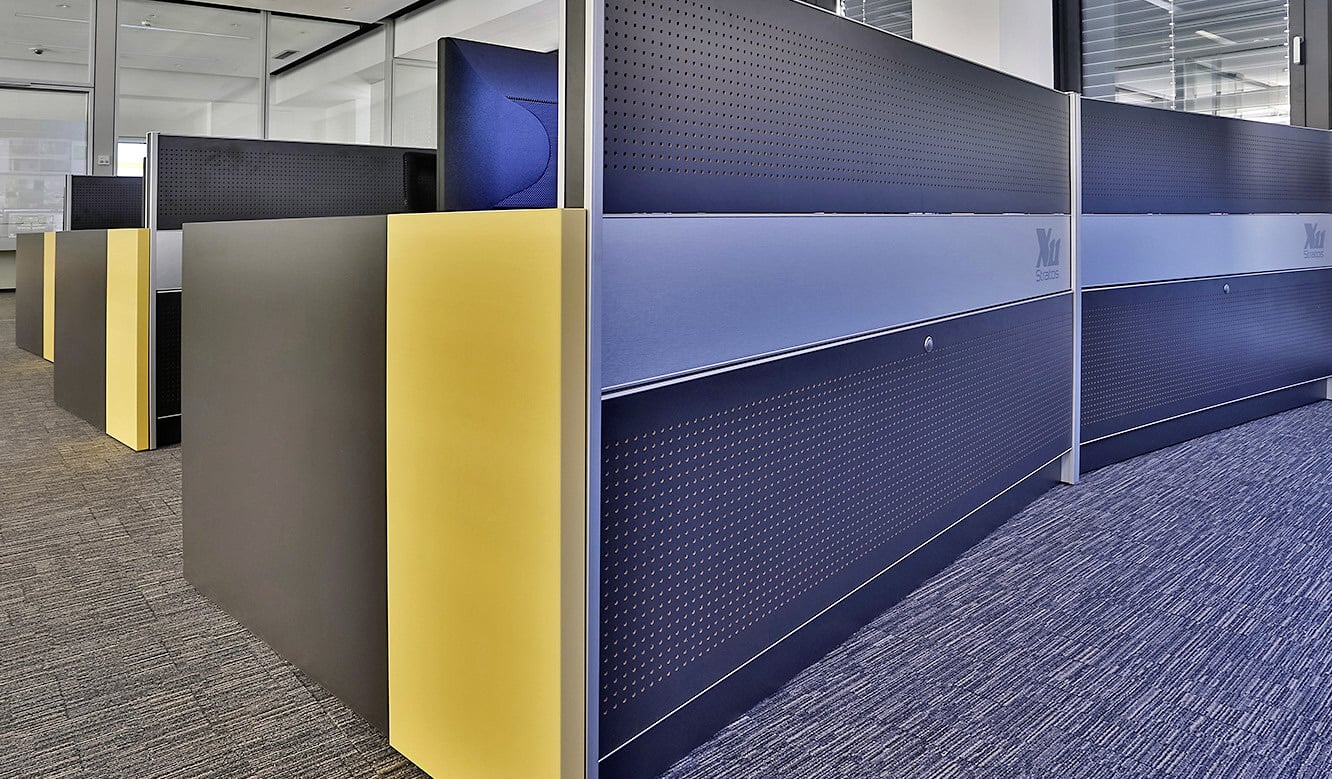

Photo 8 | JST control room desks: The special OperatorDesks of the Stratos X11® programme in the Graz Service Operation Center are equipped with special sound-absorbing acoustic back panels. The Stratos X11® also has inspection flaps for generous supply rooms...

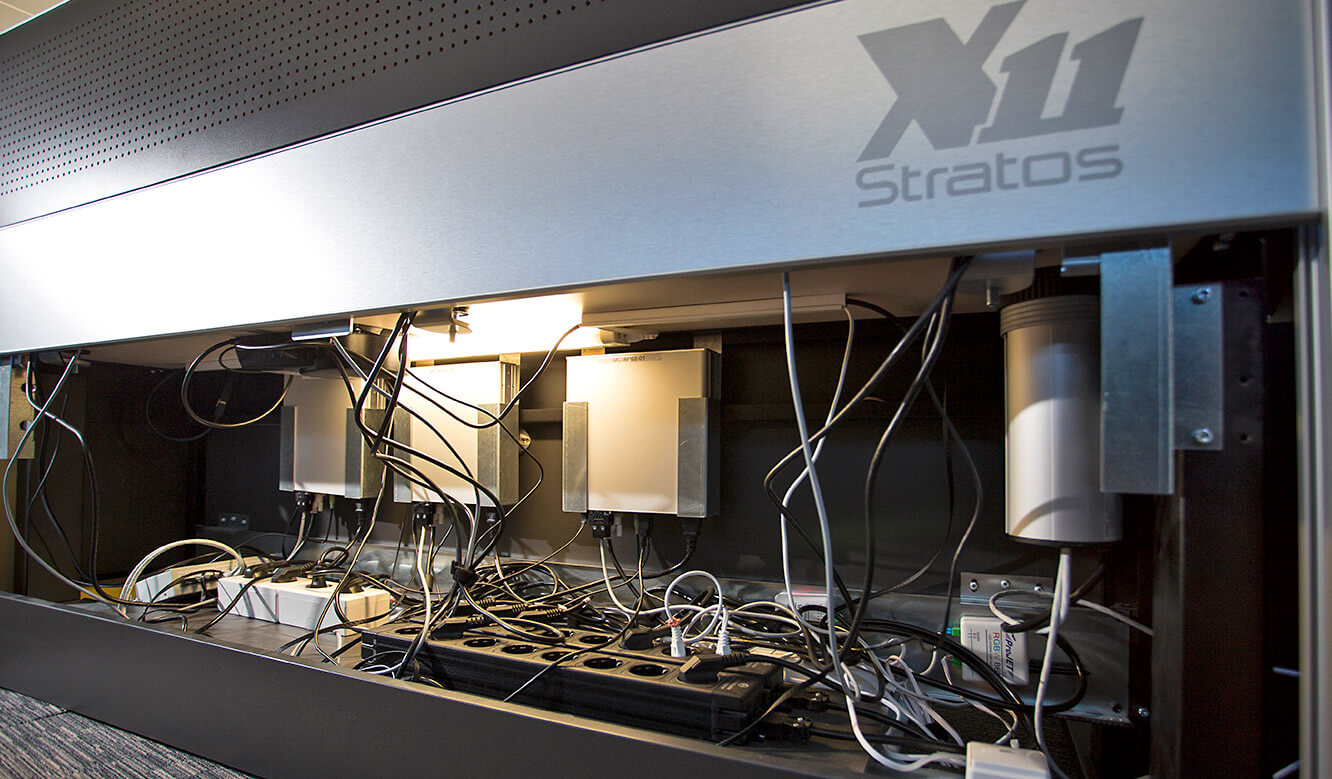

Photo 9 | ... there is room for large quantities of cables and technology, such as the MultiConsoling receivers - a special feature that standard desks do not offer.
Photo 10 | JST control room desks: Constant one-sided posture during screen work is a frequent cause of tension and back problems. This is where the Stratos X11® OperatorDesk prevents ...
Photo 11 | ...the height adjustment up to the standing height enables an alternating posture and avoids damage to health.

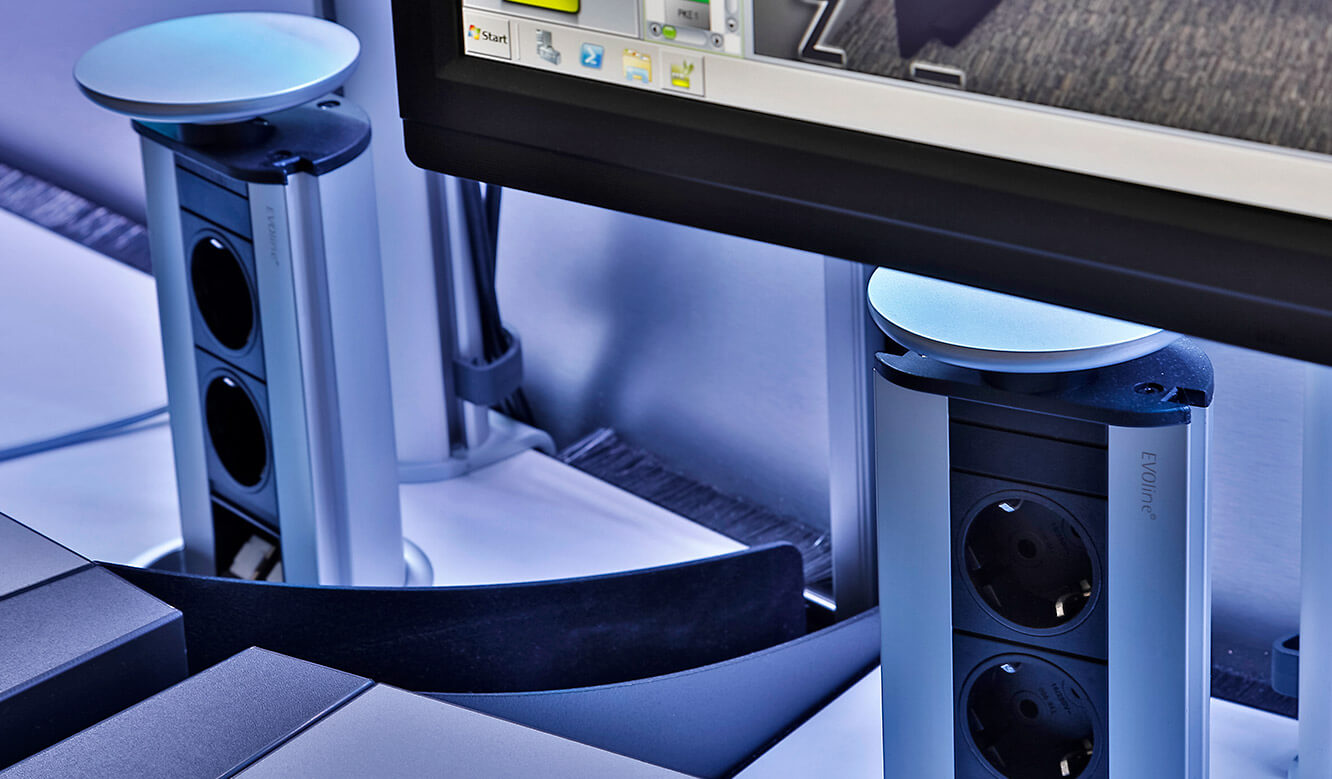

Photo 12 | JST Power Port Data Module: The Stratos X11® OperatorDesks have been equipped with Power-Port-Data drawer, so that users have two LAN and two 230V power connections directly at the workstation.

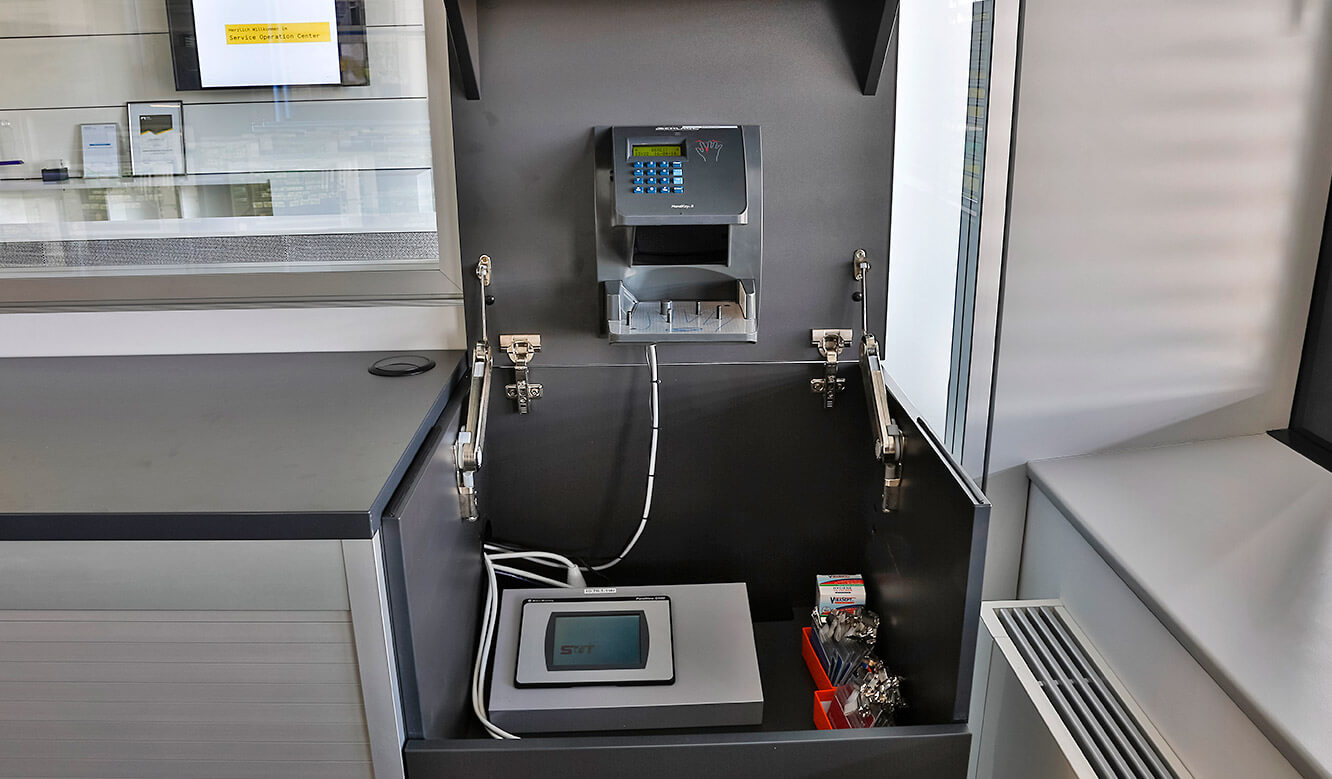

Photo 13 | JST furniture: For the hand biometric scanner, with which the doors open for the authorised personnel in Graz-Raaba, a special cabinet was constructed by JST.

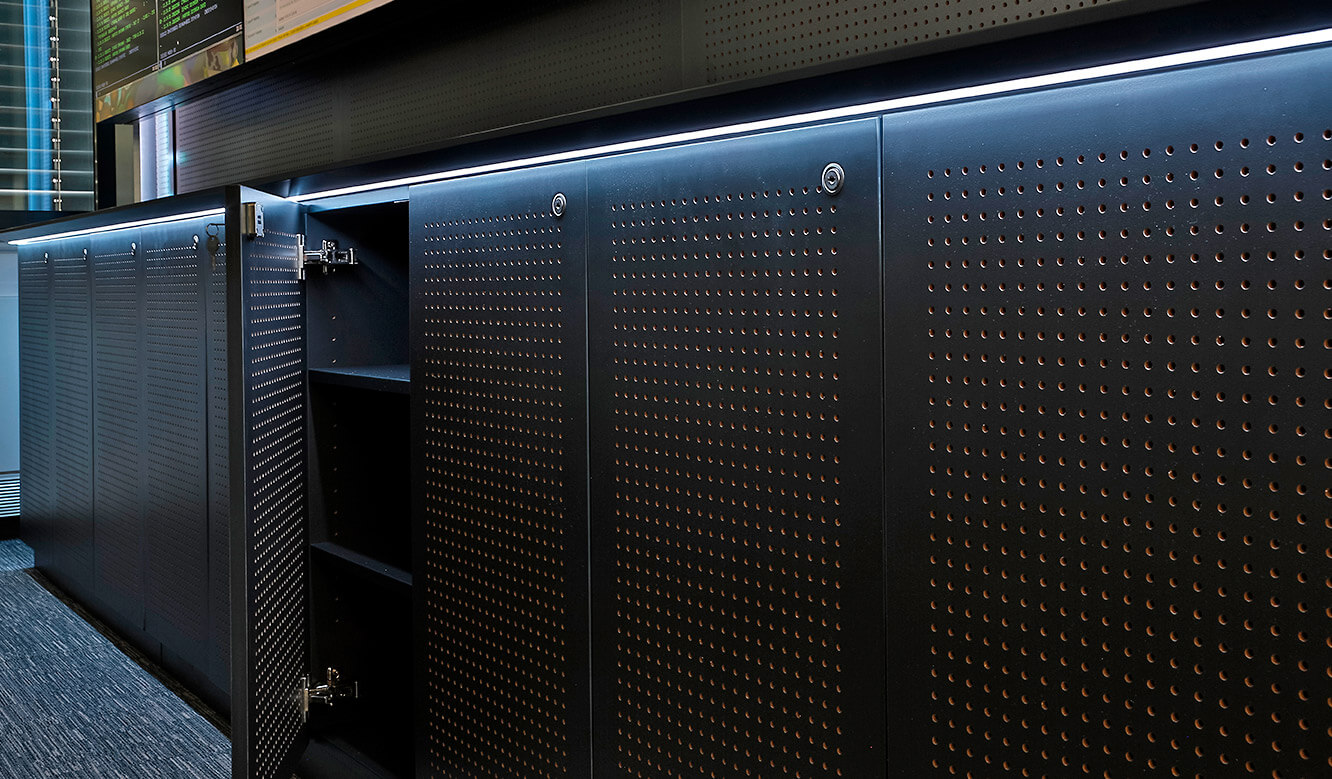

Photo 14 | JST furniture: Integrated into the cladding of the video wall and visually highlighted with the JST AmbientLight - lockable personality cases, here in a sound-absorbing acoustic version.

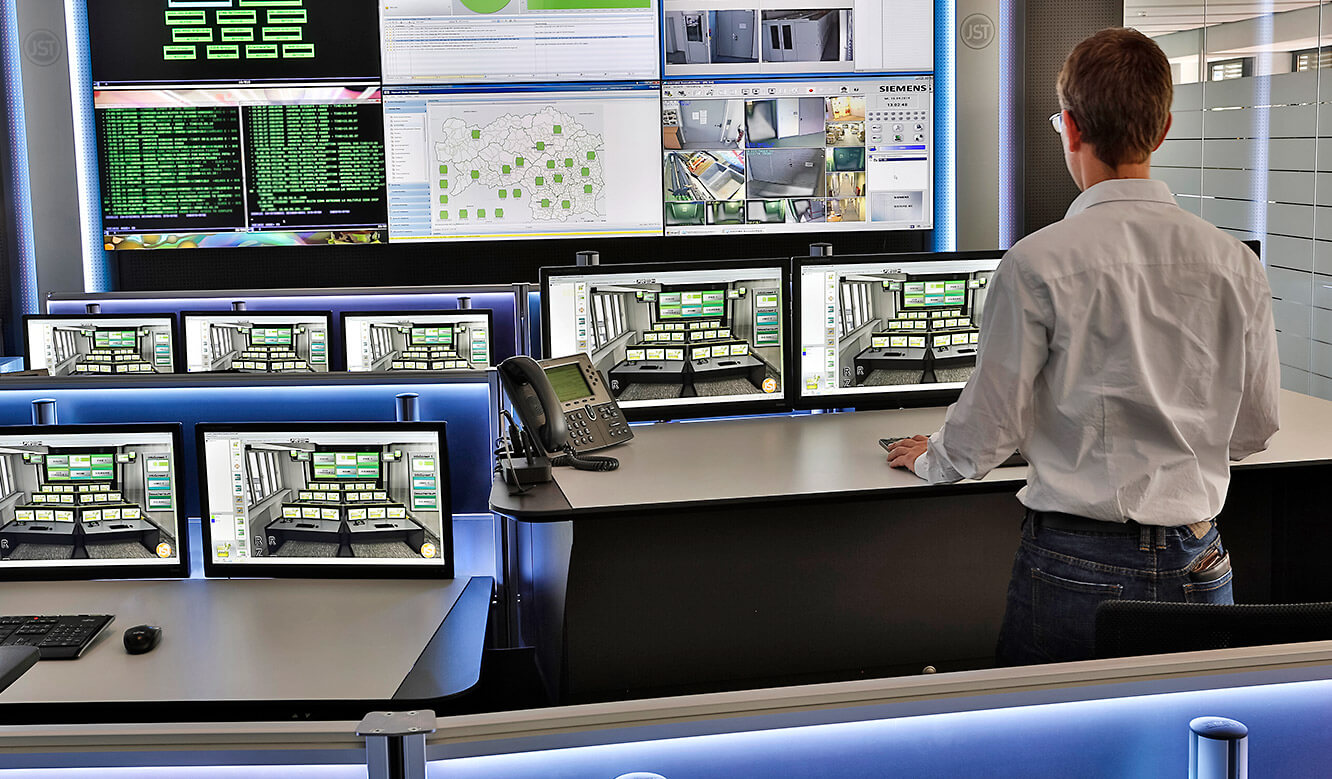

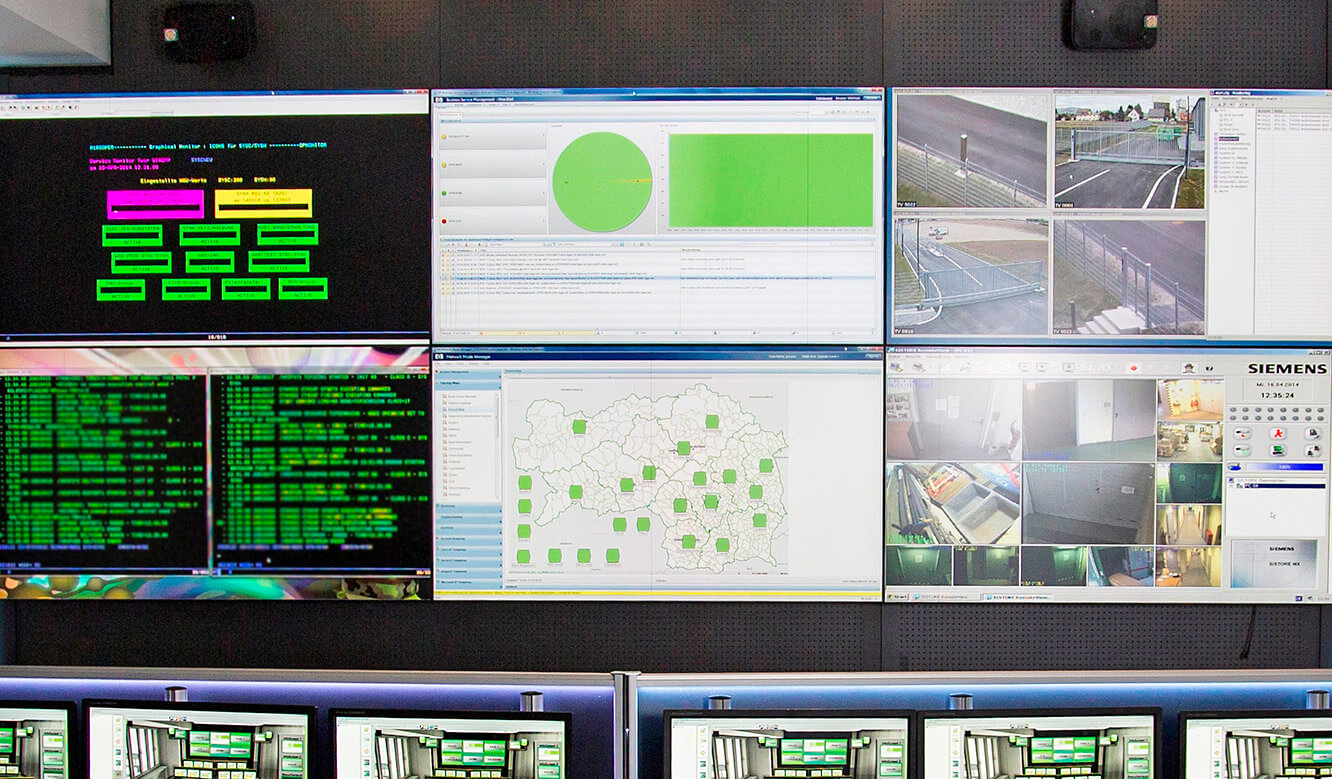

Photo 15 | JST large display wall: The JST DisplayWall with 6 55" displays keeps the entire control room team informed about the most important events in real time. This is ensured by an automatic source activation, the JST PixelDetection software. The 24/7-capable business displays are installed in a large screen wall cladding; this keeps noise and heat away from the operator workstations. A hole perforation (acoustic version) additionally minimises speech sound. Behind the stainless steel design strips, the AmbientLight provides pleasant, indirect lighting; the colour can be individually adjusted.

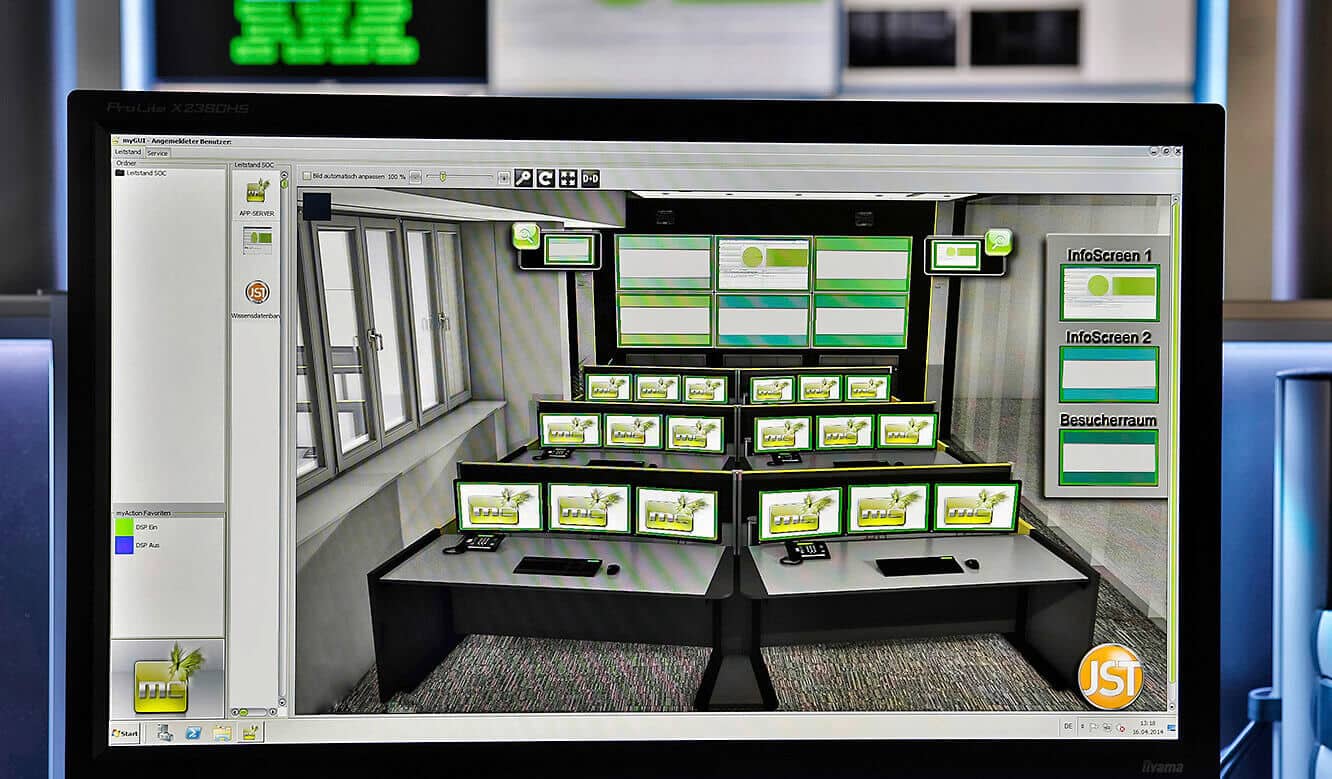

Photo 16 | JST MultiConsoling®: The myGUI serves as a user interface for MultiConsoling®, with which it is possible to display any sources (computers, cameras, etc.) in real time on the workplace monitors, on individual large-screen displays or as BigPicture across several large-screen displays. Another special feature: Only one mouse and keyboard are needed for each workstation to operate everything in real time.

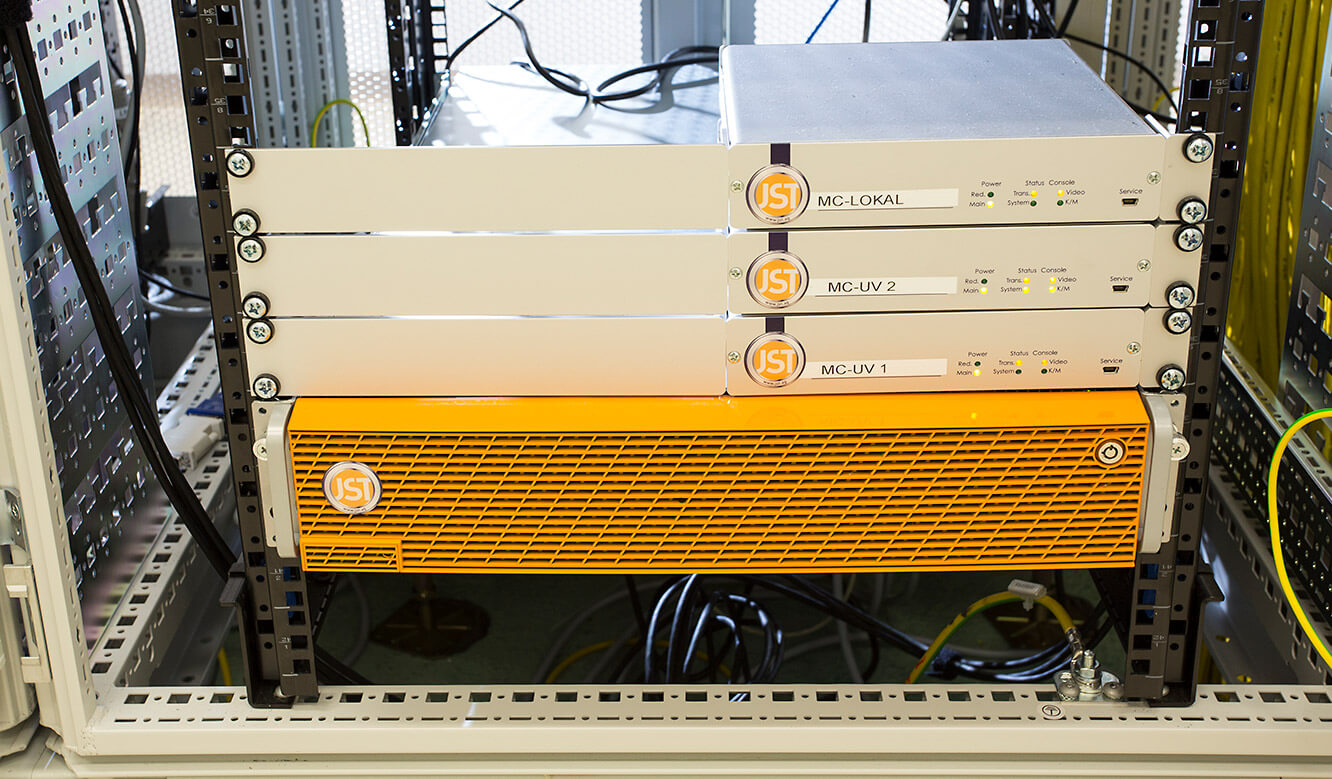

Photo 17 | JST technology: Sophisticated hardware for JST MultiConsoling®; from above: Power Unit in redundant design for the 230-Volt supply of the underlying framegrabbers in the 19-inch installation kit. Also clearly visible: the JST MultiCenter (second unit from below) with the redundant MultiCenter below it.
Photo 18 | JST server: The JST Application Server is the myGUI host for operating the MultiConsoling® system.
With outstanding service to the new IT control center
The requirement profile for the new IT control center was clearly defined from the outset: The company was looking for a modern, future-proof solution that would suit an independent IT service provider with the most modern data center in southern Austria. RAITEC GmbH has chosen Jungmann Systemtechnik GmbH & Co. KG (JST) as a powerful partner for the new building of its Service Operation Center (SOC). Both the furniture and the hardware and software in the new SOC thus come from a single source.
The services of the independent IT full service provider not only include the monitoring of the entire IT infrastructure of the RAITEC GmbH in the new control center, but also comprehensive services for IT market customers – from access control, video and alarm monitoring, climate control to system and application monitoring.
In view of this range of tasks, JST was able to convince in several respects: In addition to the extensive product portfolio, Dietmar Schlar (RAITEC Managing Director), Stefan Hermann (Head of Department Mainframe System Management and Application Control) and Martin Galli (Team Leader Service Operation Center Graz), took a closer look around the control centers of Jungmann customers “Unicredit” and “Bundesrechenzentrum” (both in Vienna). “The people responsible there have given us extremely positive feedback. That convinced us,” says Stefan Hermann.
The Project Manager not only appreciates MultiConsoling®, a concept for the control of all workstations and the large display system,with which central monitoring is now possible without any problems, but also the JST PixelDetection® software, which he and Martin Galli particularly praise: “Our response times have been considerably reduced as a result of the proactive approach.
Stefan Hermann also sees the control station furniture from the STRATOS X11® range as “Huge Added Value” in the new SOC: “With this ergonomic furniture,we already meet the legal requirements of tomorrow today”. Conclusion of the data center manager: “JST has provided an outstanding service – from the first inquiry to the acceptance”.
