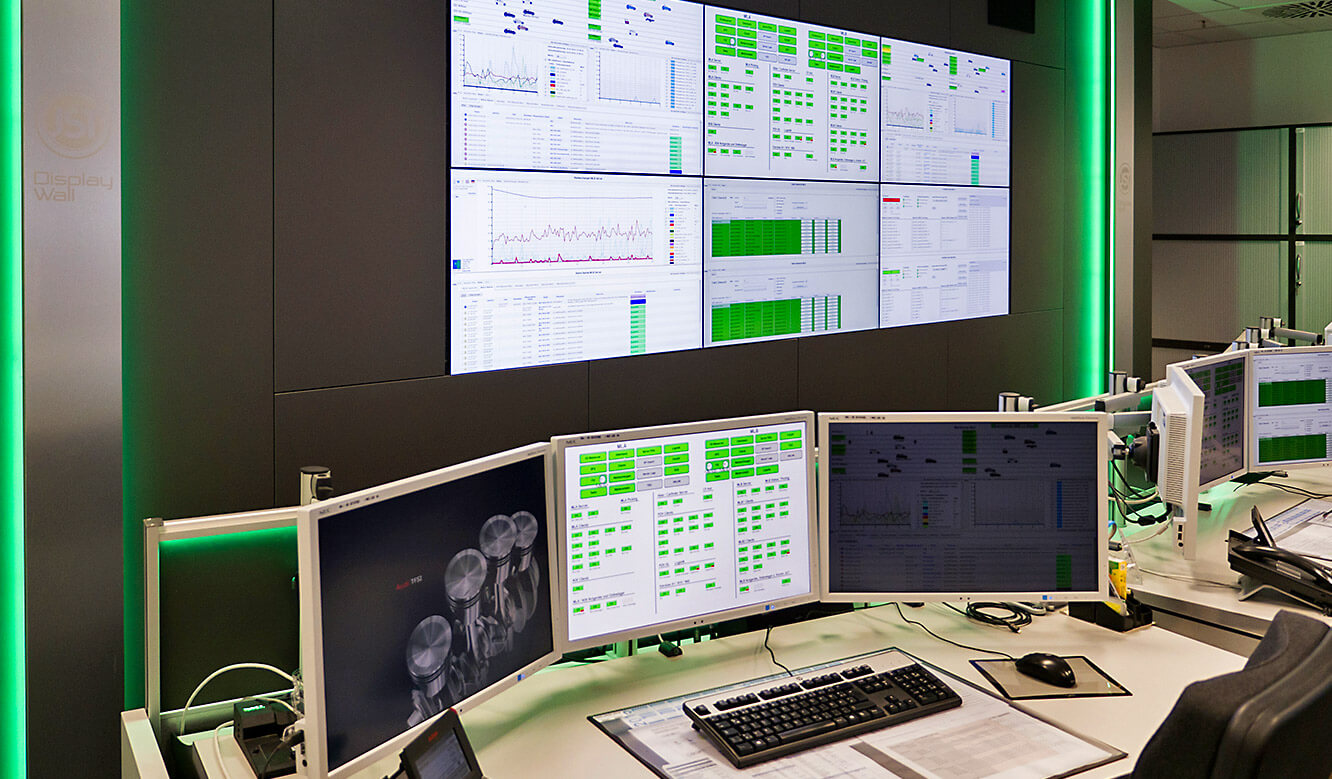

Photo 1 | JST large display wall: The JST DisplayWall with 6 46“-displays keeps the entire control room team informed about the most important events in real time.1 This is ensured by an automatic source activation, the JST-PixelDetection-Software.
Photo 2 | JST control center desk: The special Stratos X11® OperatorDesks are equipped with inspection flaps for generous supply rooms.
Photo 3 | JST seal of approval: Just one of many details that make JST furniture unmistakable: the seal of approval in brushed stainless steel.
Photo 4 | JST Power Port Data Box: Flush with the surface of the Stratos X11® OperatorDesks: the Power-Port Data Box, which...
Photo 5 | ...makes all required supply connections available directly at the workstation when open.
Photo 6 | JST furniture: At JST, the demand for modern control room furniture is evident in every detail - here brush head seals for cable entry at any point on the height-adjustable Stratos X11® OperatorDesks.
Photo 7 | JST monitor articulated arms: The workstation monitors are attached to the OperatorDesks with height-adjustable 3D articulated arms They allow an optimal and individually adjustable viewing angle on all displays through a parabolic arrangement.
Photo 8 | JST control center workplace: In the Audi control center, particular importance was attached to the ergonomic design of the workplaces . A task that JST was able to carry out as desired, thanks to years of experience.
Photo 9 | JST control center concept: A carefully thought-out room concept, functional planning and proactive visualisation of the various systems - In Audi's Ingolstadt MMS control center, operators benefit from the extensive wealth of experience of the JST specialists.

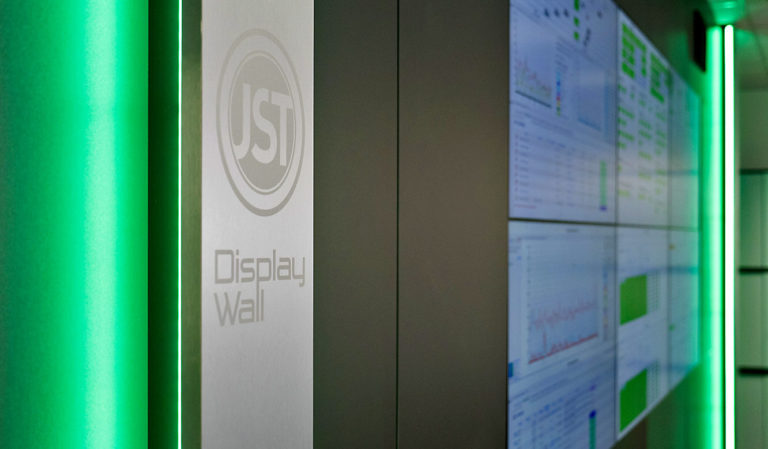

Photo 10 | JST DisplayWall®: The design strips with high-quality aluminium brushed surface and the AmbientLight give the large display walll the distinctive JST look.
Photo 11 | JST large display wall: The large display wall claddingis used for the decorative installation of the LC displays as well as for the acoustic and thermal insulation.

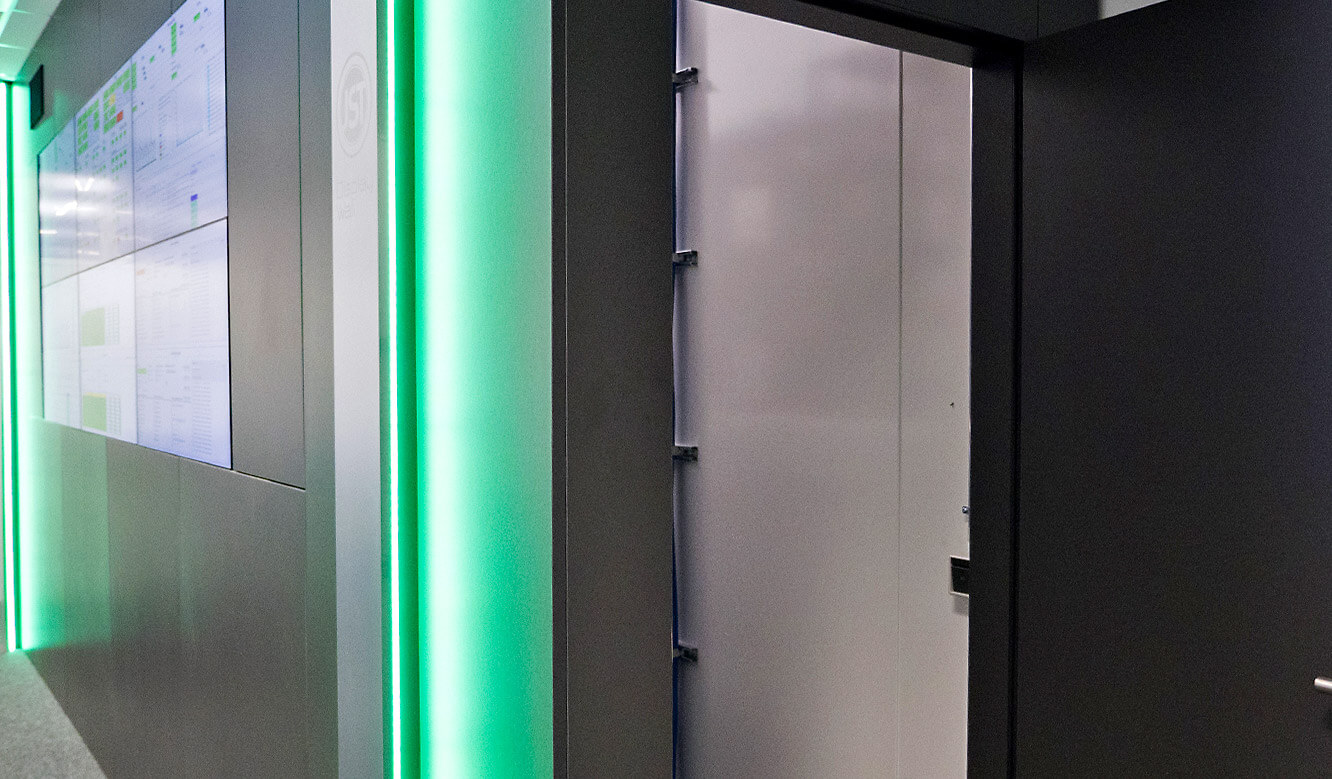

Photo 13 | ...is accessible via a door and thus ensures optimal accessibility for maintenance. Another advantage: Noise and heat are kept out of the control room in this way.
Photo 15 | JST MultiConsoling®: The myGUI - shown here on the left screen - serves as a user interface for MultiConsoling®, with which it is possible to display any sources (computers, cameras, etc.) in real time on the workplace monitors, on individual large-screen displays or as BigPicture across several large-screen displays. Another special feature: Only one mouse and keyboard are needed for each workstation to operate everything in real time.
Production control center completely new equipped
The monitoring of around 2,000 computer systems is the focus of the employees at Audi’s so-called “MMS” control center in Ingolstadt. MMS – that stands for Manufacturing Management System. Behind this is the permanent testing of all steps that are necessary to produce the various models. The new control center was equipped by thecontrol room specialists from JST – Jungmann Systemtechnik®.
The JST professionals have already demonstrated their expertise in various major projects of the Audi Group. For example, in the “vehicle control” control center, which serves as a pilot control center within the company. Also the responsible persons of the control center of MMS have taken a close look at it. MMS project manager Jürgen Schneider on this: “This was a perfect reference for us. We are in constant communication with our colleagues there.”
Control station is the point of contact for production
As first-level contact for production of the Audi models A3, A4, A5 and Q5, the MMS team has a round-the-clock view of all systems for assembly, body shop and paint shop. Every component that is used for the individual cars is precisely displayed to the production staff. With more than 2,500 cars a day, a huge amount of information that needs to be monitored.
JST control center workplace: In the Audi control center, particular importance was attached to the ergonomic design of the workplaces . A task that JST was able to carry out as desired, thanks to years of experience.
The JST software makes response times shorter
Given the complexity of all this information, Jürgen Schneider values the technology installed by Jungmann. With the PixelDetection alarm software®, the operators in the control center are immediately informed via the new proactive large screen wall if a fault occurs anywhere. “The softwarehas the great advantage that the employees do not have to keep a permanent eye on all systems, but are proactively alerted to current events”, says Jürgen Schneider, “this not only provides noticeable relief, but also shortens response times”.
JST large display wall: The large display wall claddingis used for the decorative installation of the LC displays as well as for the acoustic and thermal insulation.
All relevant information on one dashboard
The project manager mentions another advantage that was realised with the JST equipment in the control center: “Thanks to the Software CockpitView®, we are able to combine a wide variety of systems and all relevant information on one interface as a complete view.
JST MultiConsoling®: The myGUI – shown here on the left screen – serves as a user interface for MultiConsoling®, with which it is possible to display any sources (computers, cameras, etc.) in real time on the workplace monitors, on individual large-screen displays or as BigPicture across several large-screen displays. Another special feature: Only one mouse and keyboard are needed for each workstation to operate everything in real time.
Great acceptance by the employees
The JST products are not only praised by those responsible for the project, but also by the control center staff, who appreciate the ergonomic advantages of height-adjustable Operator Desks, for example. “We involved the employees in the planning right from the start and the acceptance is correspondingly high,” says Jürgen Schneider, who mentions another benefit: By using JST MultiConsoling®– technology, it was possible to outsource the computers to a separate technical room. The result: significantly less exposure to noise and heat in the control center.
