Photo 1 | JST control center concept: The operator team in the control center of the Hannover Medical School benefits from the extensive experience of the JST specialists. The perfect combination of technology and design - here in combination with the AmbientLight - creates ideal conditions for a pleasant working atmosphere.

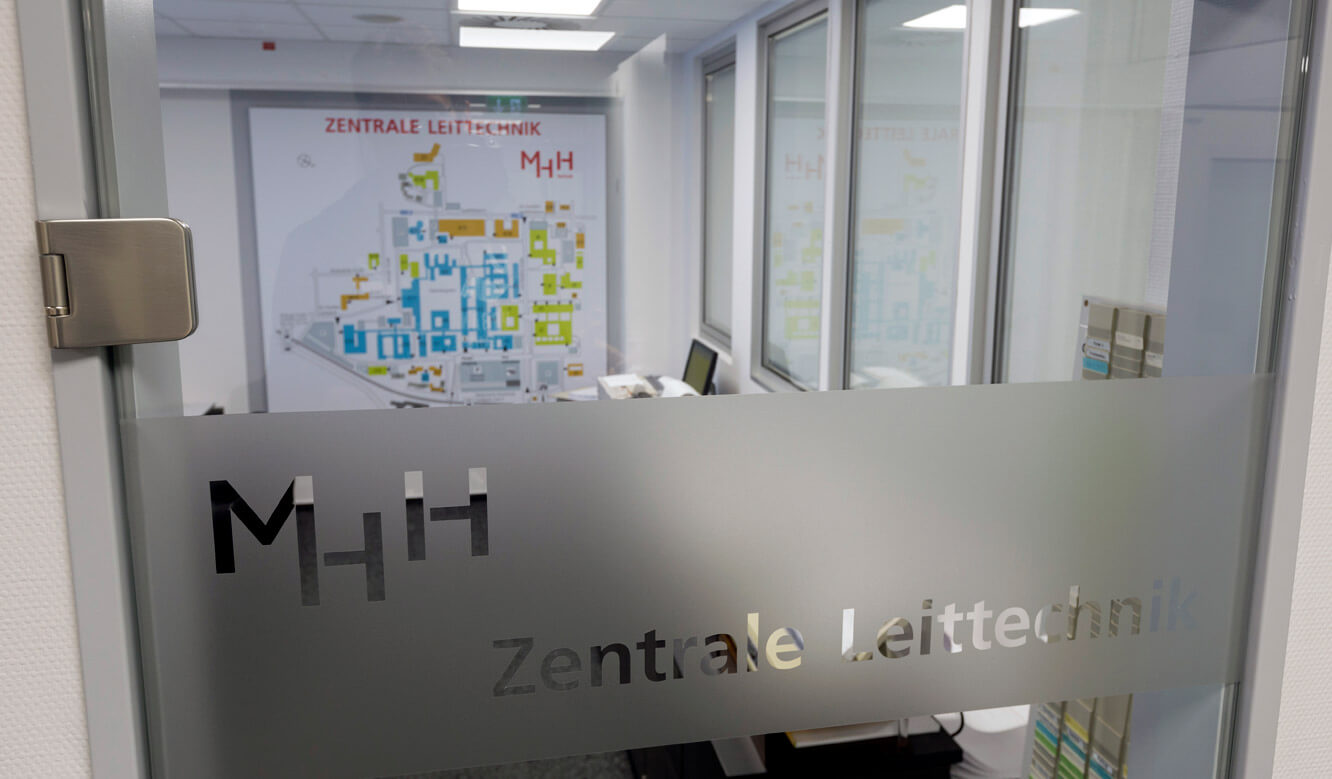

Photo 2 | Entrance to the new control center - behind the door is an excellently coordinated from a technical and ergonomicpoint of view.
Photo 3 | JST Operator worktables: The special Stratos X11 CommandDesks in front of the large display wall - one of the many advantages of these operator desks is the possibility of height adjustment.
Photo 4 | JST Operator Center Desks: With an adjustment up to standing height, the Stratos X11 Operator Desk allows an alternating posture and thus prevents health problems.
Photo 5 | JST control center desk: Offer a perfect look thanks to generously dimensioned supply rooms: The desks of the Stratos X11 series enable cleanly installed technology without visible cables.
Photo 6 | JST Power Port Data Module: Flush-mounted in the surface: the Power Port Data Extract, the...
Photo 7 | JST Power Port Data Module ...makes the required power supply connections available directly at the workstation.
Photo 8 | JST special production: Special sideboards for various printer technology were manufactured individually according to customer requirements.
Photo 9 | JST Ambiente: The lighting in the control center of the Hannover Medical School is controlled by a key combination; the colours can be freely and intuitively selected. They create a pleasant atmosphere, which contributes significantly to a positive working environment.
Photo 10 | JST large display wall: Business displays integrated in the JST display rack with media board - the racks are equipped with roller runners for the case of revision.
Photo 11 | JST Displays: Thanks to the movable display rack, the displays can be flexibly rolled backwards and forwards in the room to allow rear access for maintenance purposes.
Photo 12 | JST MultiConsoling®: The receivers for the JST MultiConsoling® are located behind the large display wall. Thanks to this technology, all information can be accessed from any workplace.
Photo 13 | JST MultiConsoling®: With the interactive 3D user interface myGUI (shown here on the middle screen), the JST MultiConsoling® can be operated at the touch of a button.
Photo 14 | JST Rechnerauslagerung: Less heat, no disturbing noises: The computer technology was outsourced to an external technology room using MultiConsoling®.
Photo 15 | JST technology: In the upper half of the picture are the so-called "grabbers" to which the individual computers are connected. In the lower half of the picture: the heart of the JST MultiConsoling® - the MultiCenter.
Optimum conditions created for technical control center
Regardless of whether only one bulb fails or a complex operation has to be coordinated in case of a fire alarm. All the threads come together in the control center for technical control of the Hannover Medical School. With an area of around 400,000 square metres, the hospital campus is the size of around 50 football pitches. In order to meet the increasing requirements to cope with ever new tasks on this huge area and to create optimal conditions in the control center, the responsible persons have sought professional support from Jungmann Systemtechnik.
A historically grown, in many ways outdated control center. Constantly new systems that need to be monitored. More than ten different screens that a single operator has to operate from different locations – and all this with basic furniture that in no way meets ergonomic requirements. “An immensely high amount of work for the employees, which could hardly be done under the given conditions,” Andreas Müller, then team leader of the control center, took stock one day.
Workstation ergonomics and improved operability
The solution of the current head of the “Electrical Engineering” department: “We need workplace ergonomics and significant improvements in the usability of our systems. During a trade fair the project manager made first contacts with Jungmann Systemtechnik. “We were delighted straight away.”
Positive feedback from other project managers
The connection was then intensified during the “JST Community” event now known as “ko:mon“. There Andreas Müller used the opportunity to get a feel for other Jungmann customers. “The response from other project managers was consistently positive,” he remembers looking back.
JST Operator Center Desks: With an adjustment up to standing height, the Stratos X11 Operator Desk allows an alternating posture and thus prevents health problems.
Products and references have convinced
Besides promising references, it was especially the JST products that convinced the head of department. Height-adjustable worktables, which can be individually adapted to each employee in alternating shifts, and a large-screen technology system, which enables permanent monitoring of all essential systems, are among the most important innovations.
JST MultiConsoling®: With the interactive 3D user interface myGUI (shown here on the middle screen), the JST MultiConsoling® can be operated at the touch of a button.
More safety and work simplification
“The choice per JST was definitely the right one.They have always adapted to our needs”, says Andreas Müller, who particularly emphasises the advantages of MultiConsoling®a concept for controlling all workstations and the large display wall: “Especially in situations that require quick reactions, the necessary monitoring can be activated immediately. This not only offers more safety, the employees also find this system to make their work easier. Everything is perfectly visualised and in case of malfunctions, it is possible to react much faster”.
Interview with Daniel Arndt, Head of Central Control Technology at Hannover Medical School
